Hello, please note: This product is available in high-frequency and low-frequency versions, as follows:

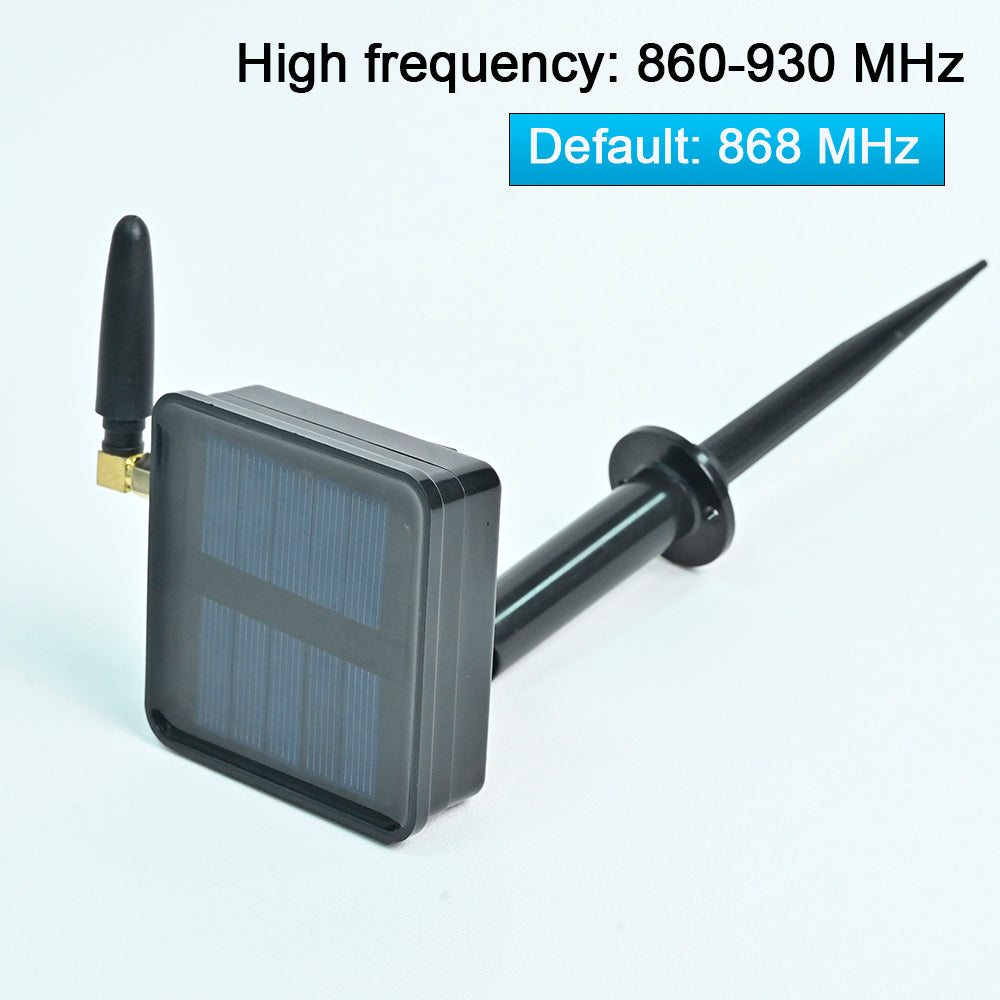

1. High-frequency version - Default shipping frequency 868MHz (supports all frequencies within the 860-930MHz band, adjustable).

2. Low-frequency version - Default shipping frequency: 433MHz (supports all frequencies within the 430-510MHz band, adjustable).

If you are unsure of the frequency used at your address, don't worry, you can refer to the image at the bottom.

Because this product is designed for outdoor use, and to achieve better waterproofing and durability, there is no external USB interface on the device. However, you can still update the firmware and reprogram the device by removing the casing, connecting a USB cable to the pin interface on the motherboard, and then connecting it to a computer. This is the best option for Loro developers. If you have any questions, please feel to contact us. We are happy to assist you!

Please carefully verify the frequency applicable to your location before purchasing. Additionally, if you require other shipping frequencies, please leave a message to inform us. Thank you!

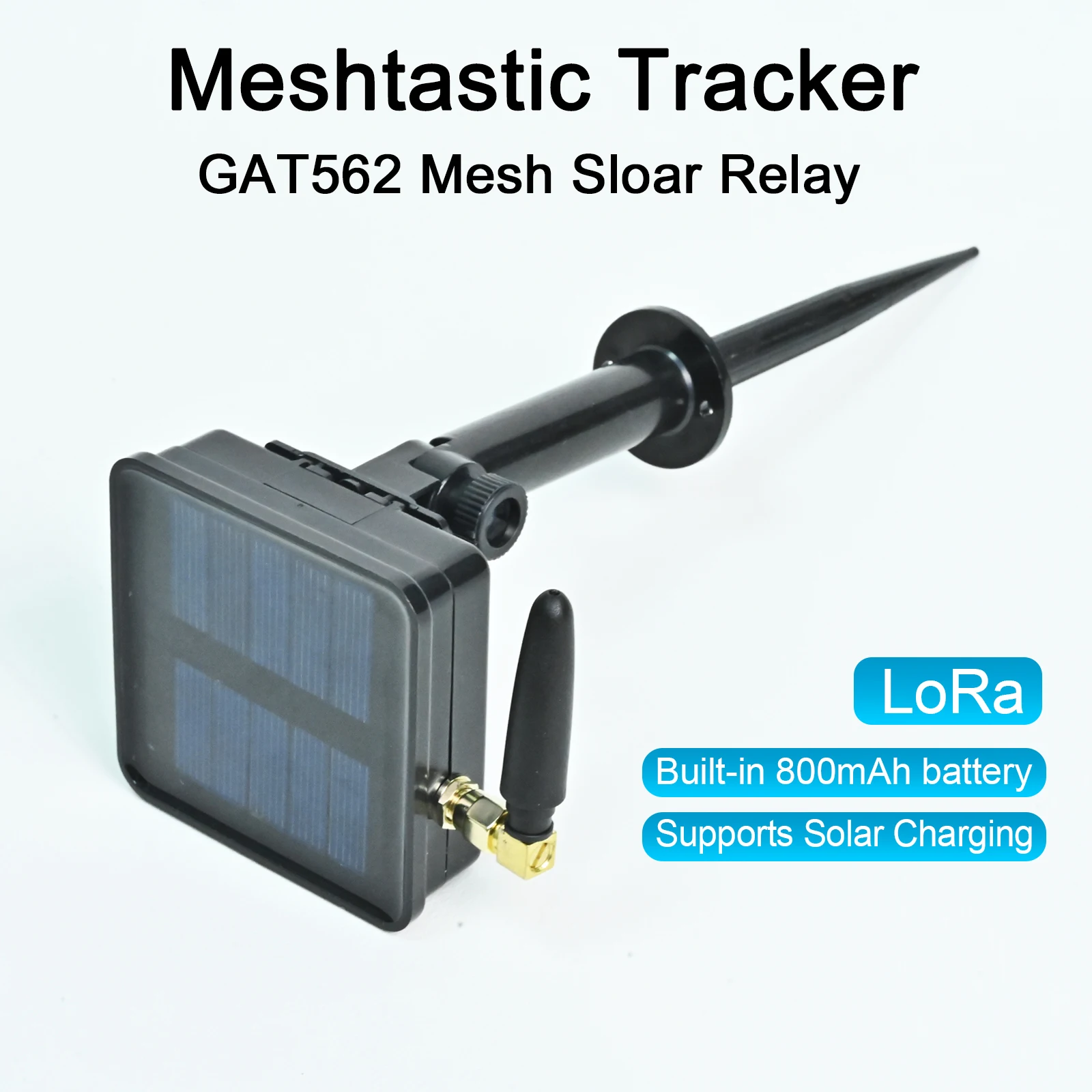

GITFOS Meshtastic LoRa Solar Powered Built-in Battery Low Power Outdoor SX1262 Solar Node Repeater Meshtastic NRF52840 Network Survival Gear

Multi-protocol support: Featuring NRF52840 and SX1262, it supports LoRa (global ISM bands in the 1-15 km range). You can freely choose your region in the Meshtastic app. It also supports Bluetooth Connectivity APP, LoRa Communication, GNSS Positioning Module, ensuring compatibility with a wide range of devices and networks.

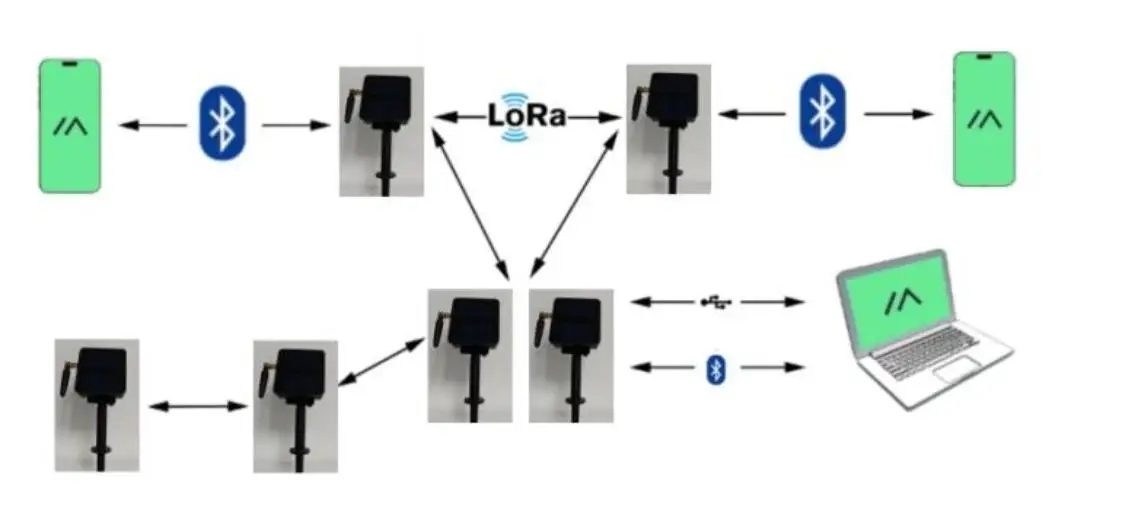

Meshtastic is an off-grid messaging system using inexpensive hardware to create your personal mesh. Radios forward messages to the next node to distribute them over the network. Communicate 1-15 kilometers between nodes. Internet-connected relay nodes enable the conversation to move online too.

Easily integrates with Meshtastic app on iPhone or Android. Comes preflashed with working version of Meshtastic firmware. Firmware updates freely available from Meshtastic site. Basic support offered by vendor if assistance is needed.

Equipped with 800mAh battery and Support solar charging,Can be meet the needs of all-weather outdoor operation; Suitable for pet tracking, outdoor hiking, mountaineering enthusiasts, and emergency rescue.

Product Features:

• Integrated GAT562 Mesh Module

• Built-in Bluetooth Antenna

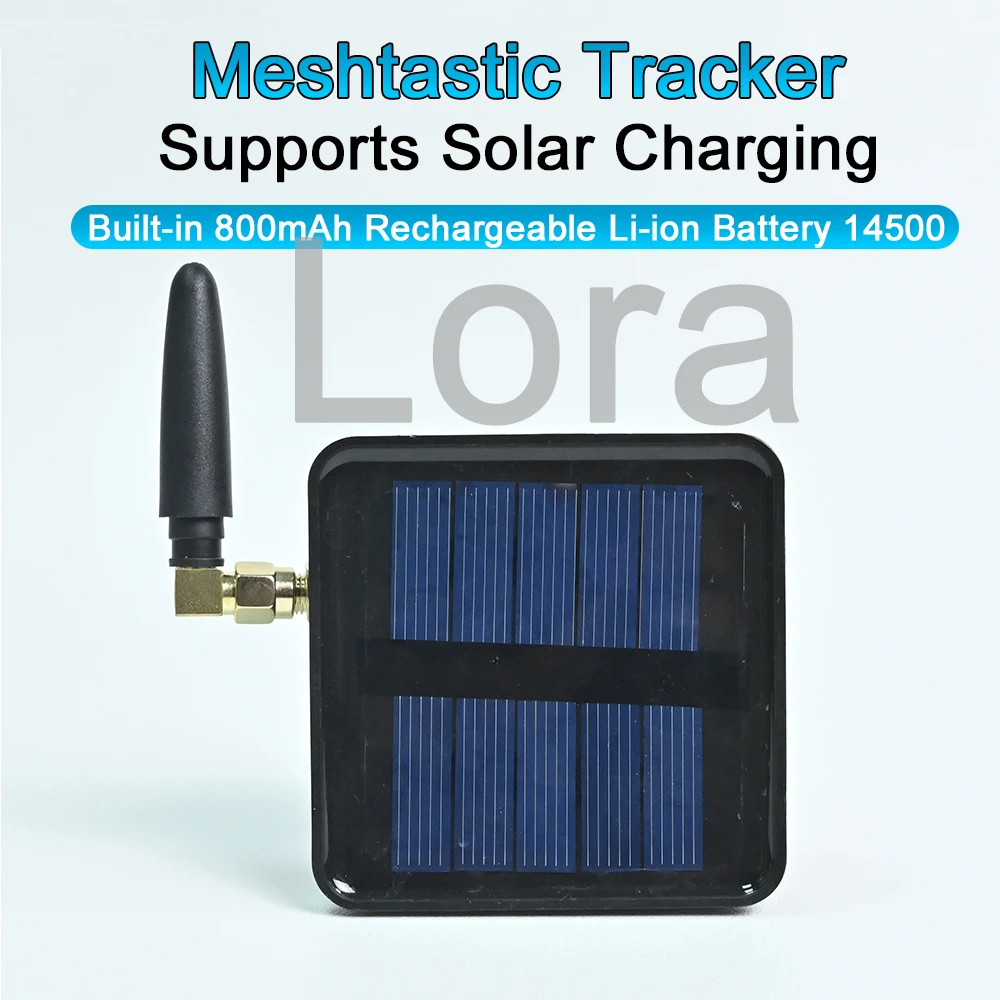

• Built-in 800mAh Rechargeable Li-ion Battery 14500

• Supports Solar Charging

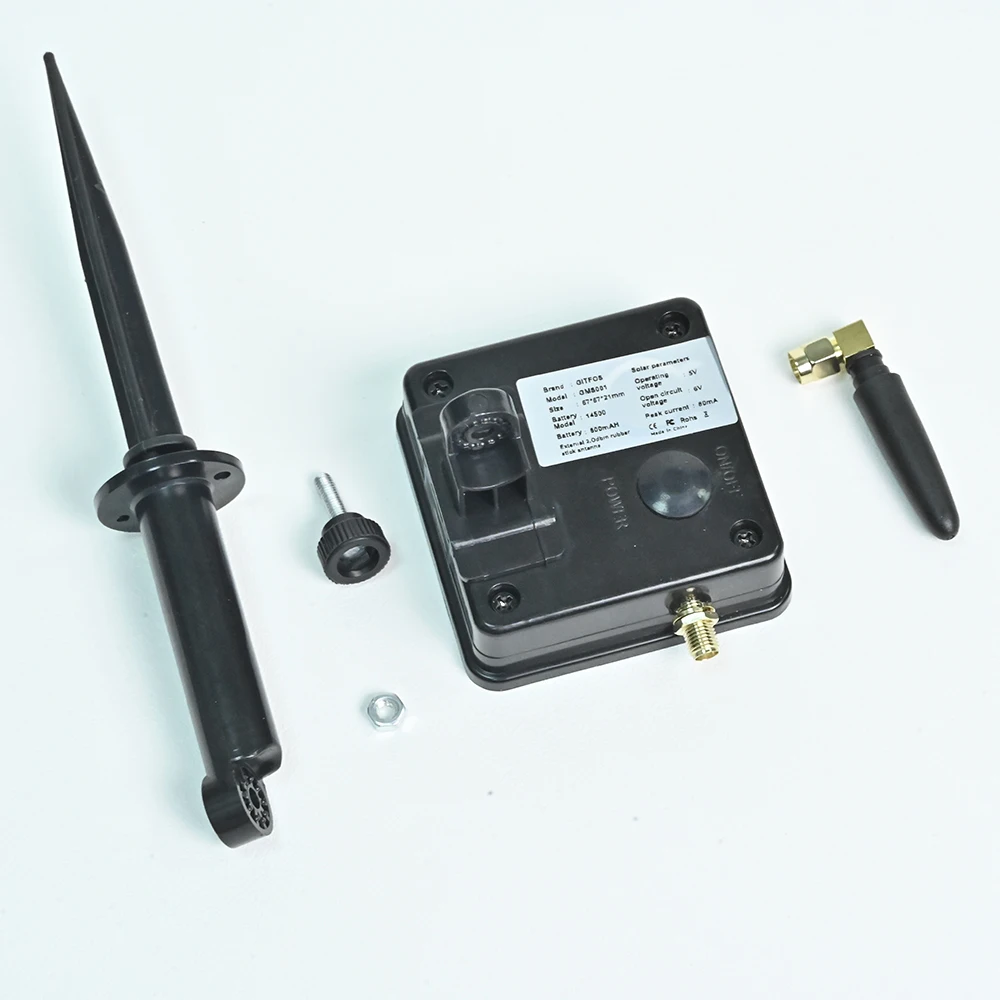

• External 2.Odbm Glue Stick Antenna

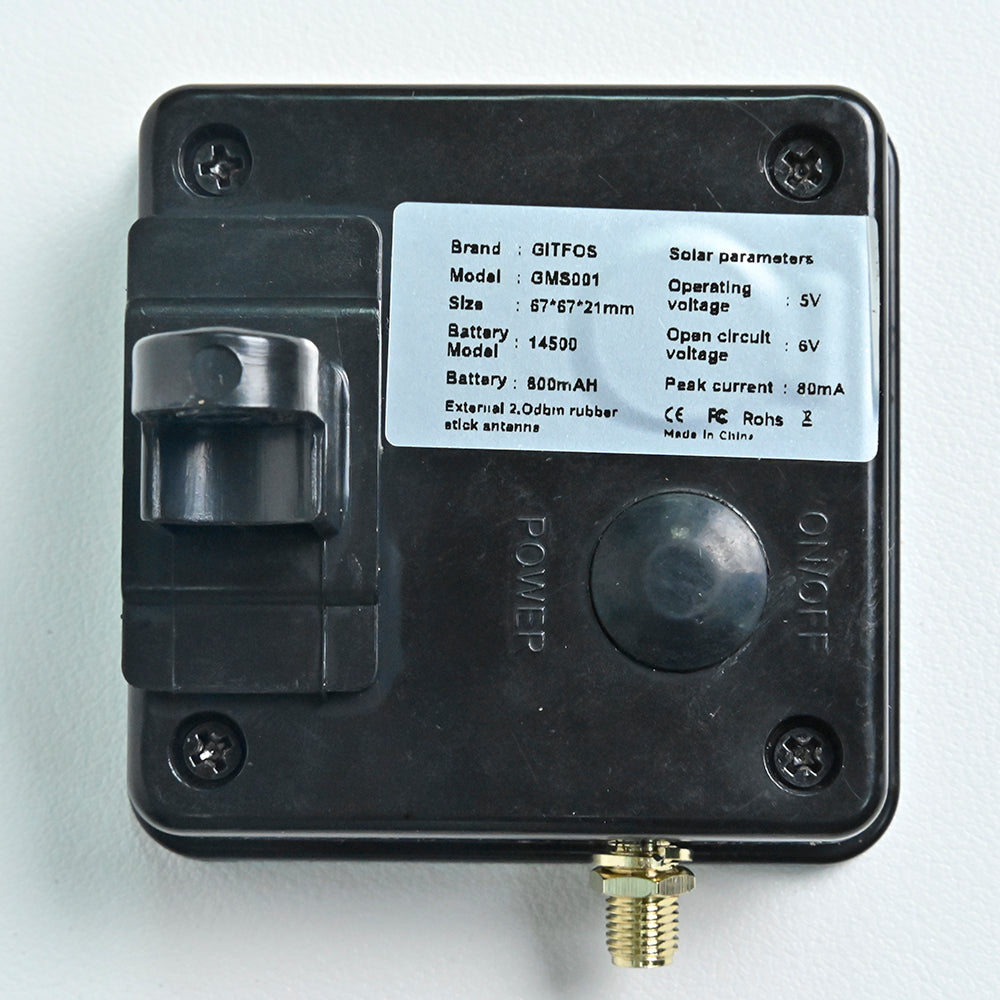

• Size information: 67mm * 67mm * 21mm (excluding antenna length)

• Weight 105g



• For those who don't want to do it, it works right out of the box.

• Fixed position

Note: If you purchased 430-510 mHz, you will receive 433 mHz unless you contact customer service to specify a frequency.

If you purchased 860-930 mHz, you will receive 868 mHz unless you contact customer service to specify a frequency.

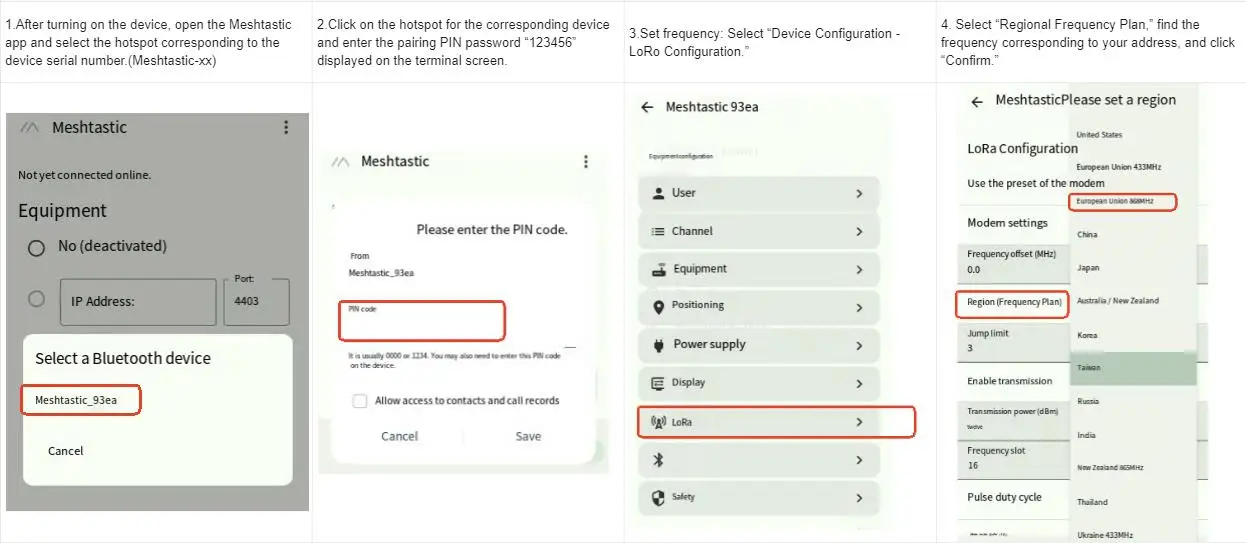

To change the frequency settings, please refer to the diagram below. Thank you for reading.

Meshtastic Firmware Update Guide Reference:

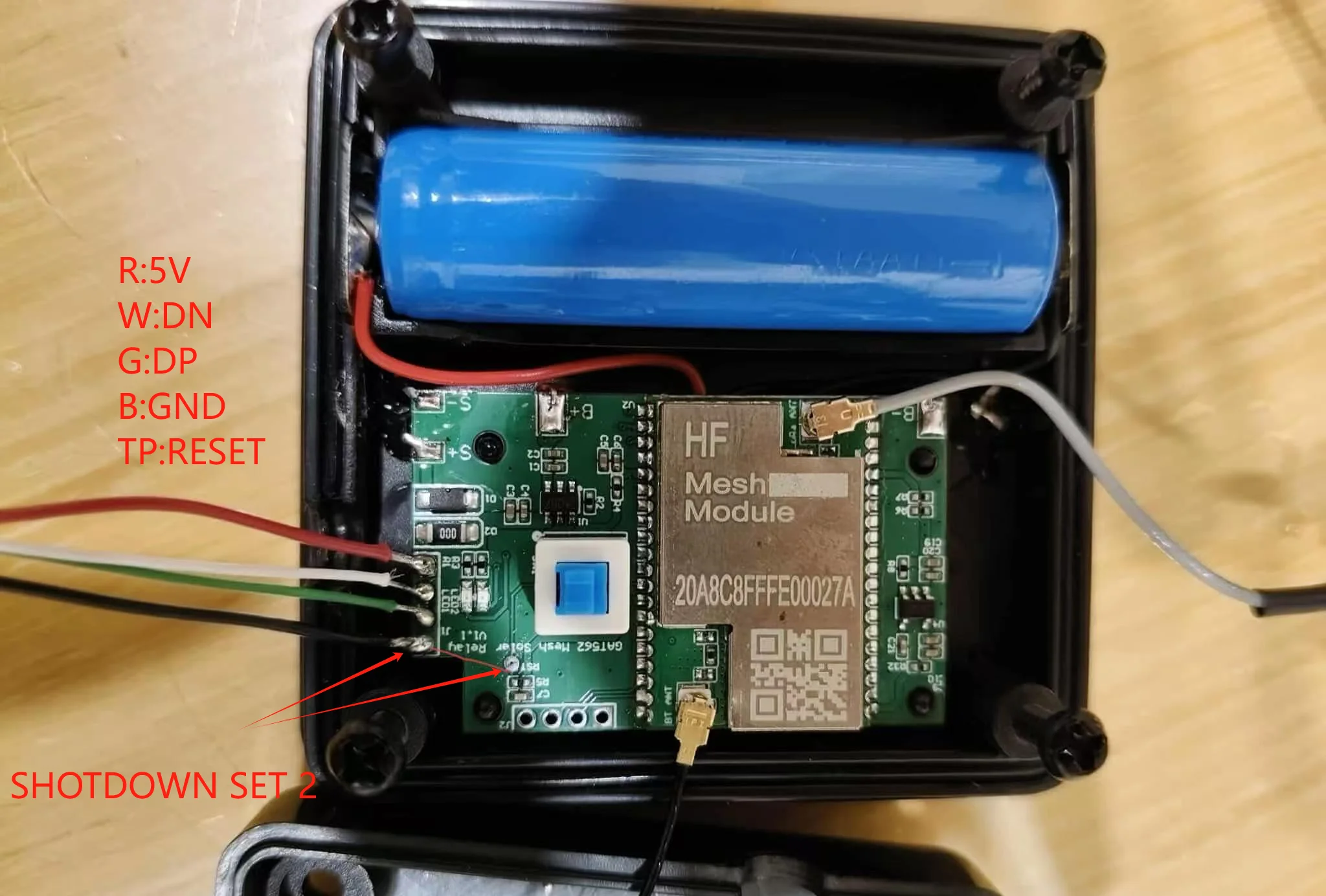

Please use a USB cable to connect to the header pins on the motherboard and connect to a computer for updating.

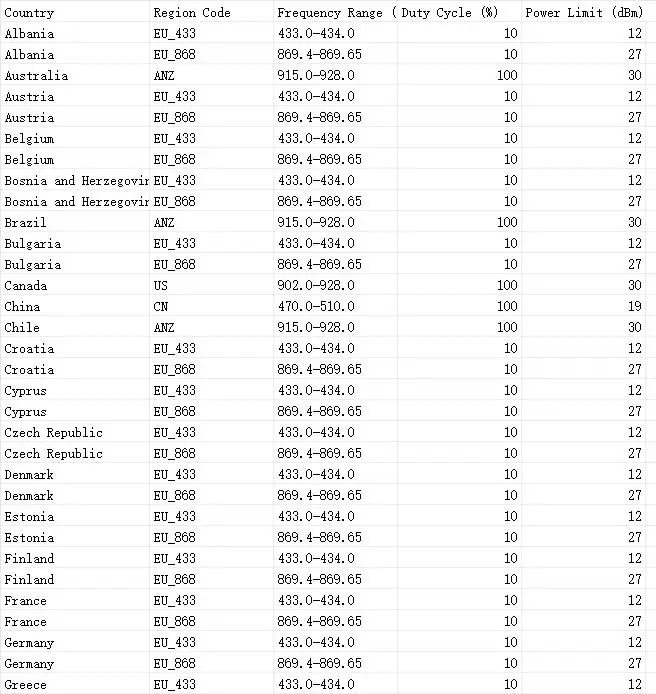

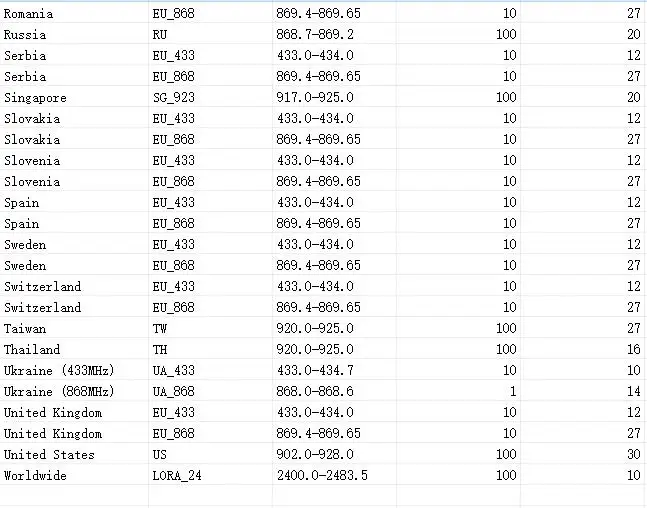

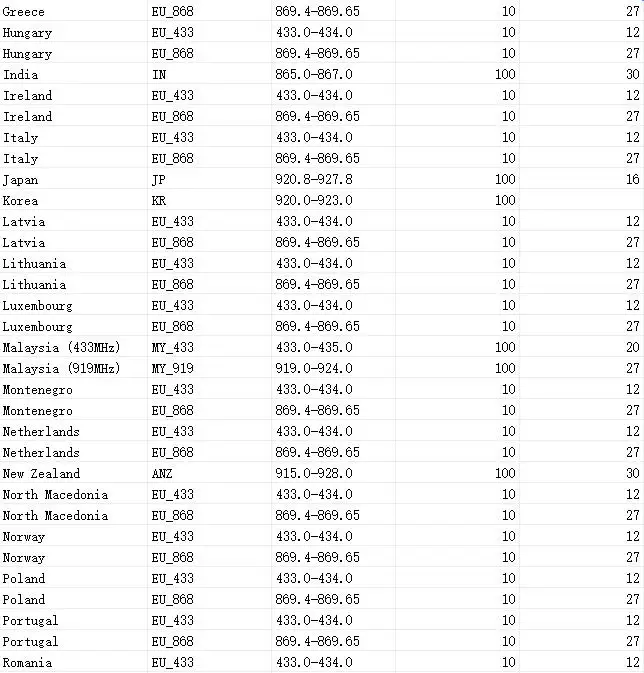

Reference chart for corresponding countries/frequencies

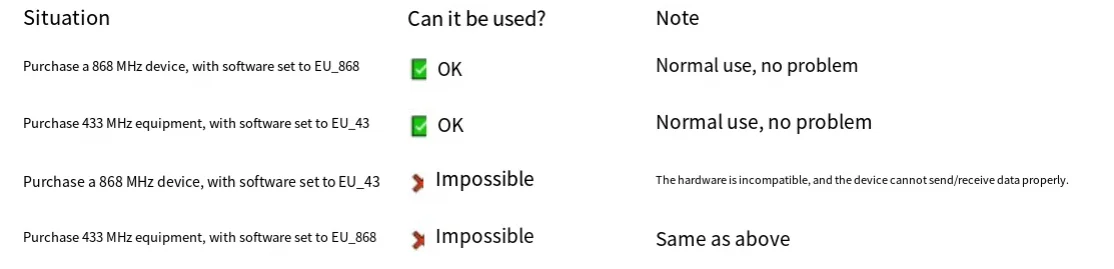

Note: The UK allows both the UK_433 (433 MHz) and EU_868 (868 MHz) frequency bands. This means that after purchasing a high-frequency band (868 MHz) device, you only need to set it to EU_868 mode in the Meshtastic software to use it.
