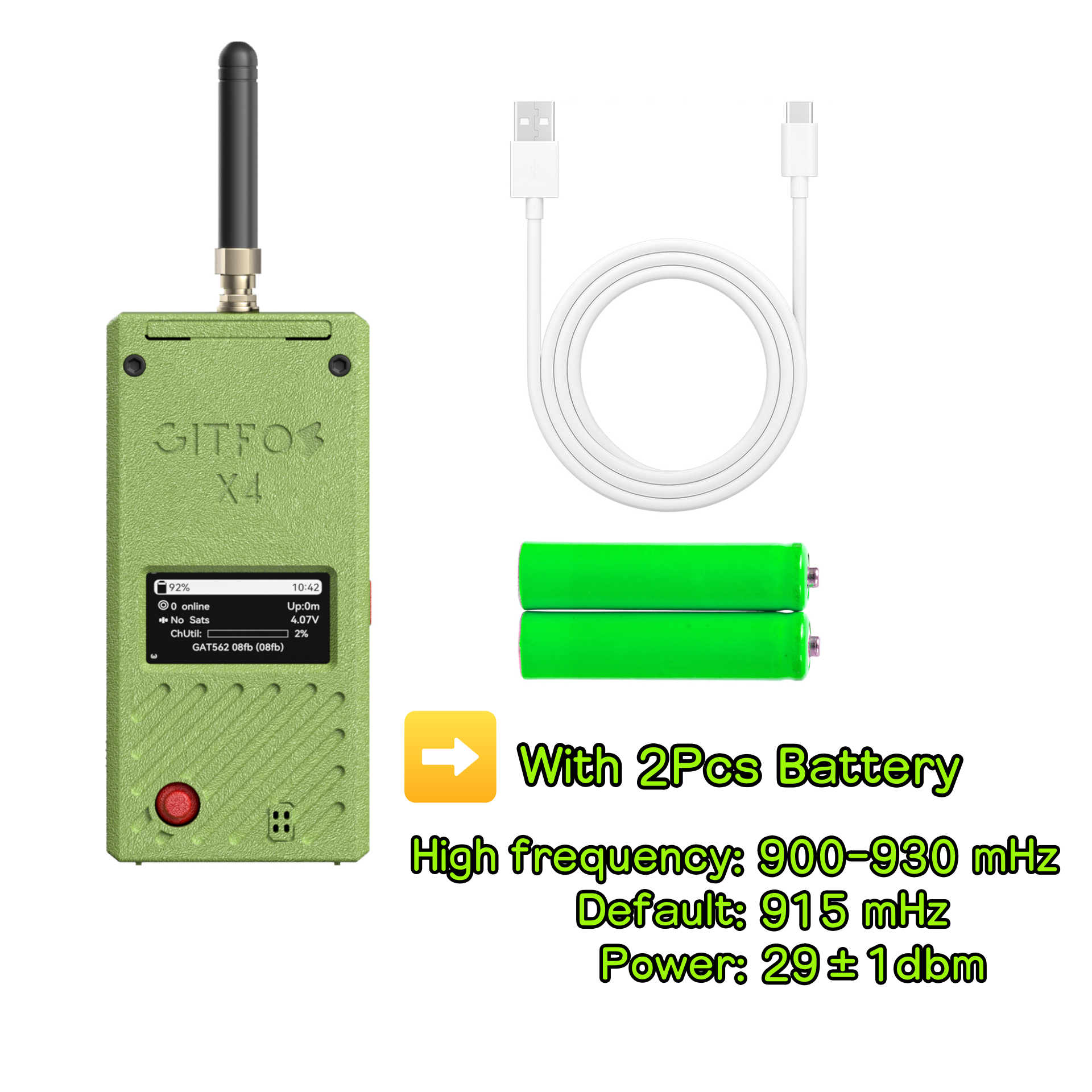

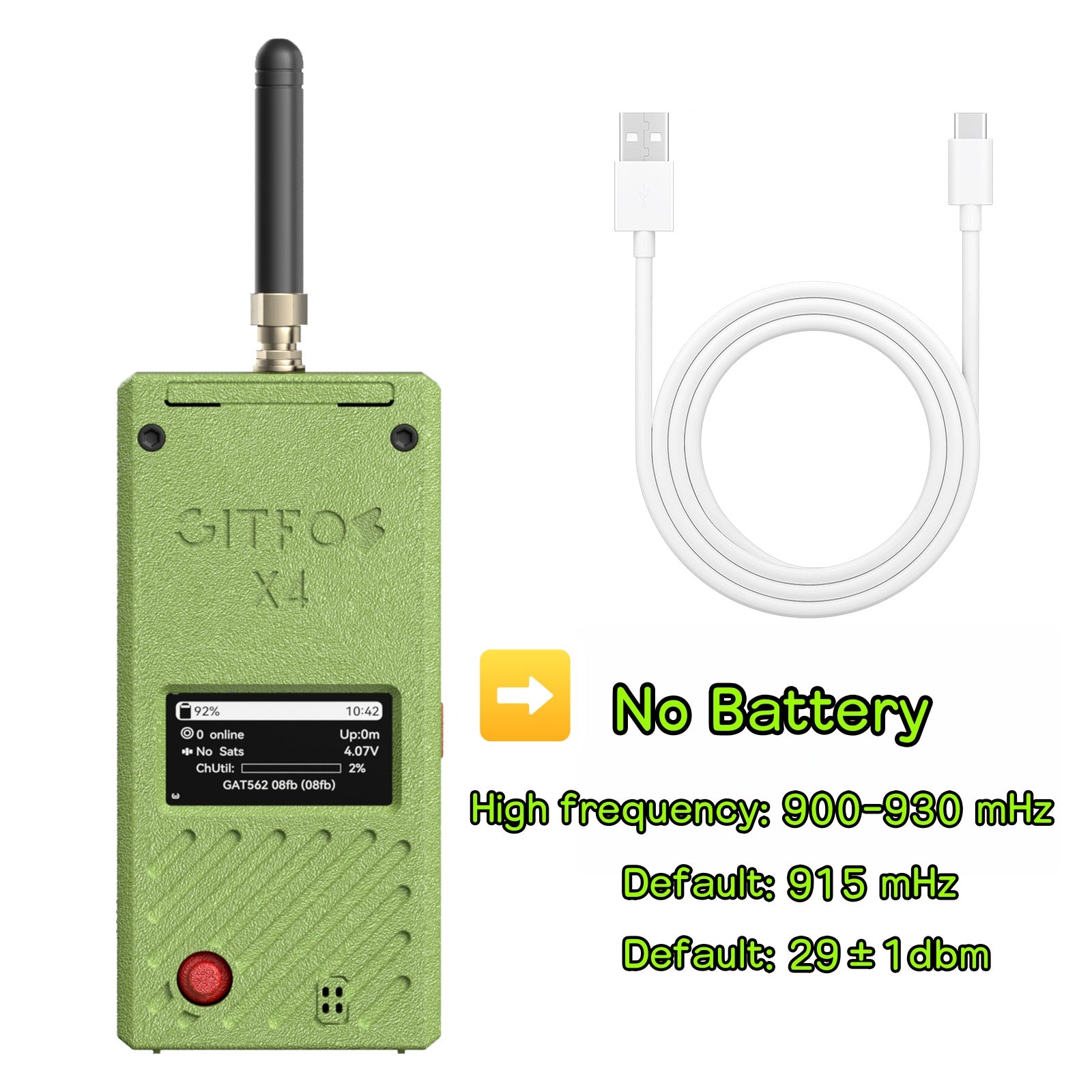

GITFOS Meshtastic nRF52840 With 5000mAh Battery | X4

GITFOS X2 Meshtastic nRF52840,LORA SX1262,L76K GPS Antenna With 5000mAh Battery,for Meshtastic LoRa, Blue Tooth 5.0, GPS GNSS,1.3" OLED, Battery Type-C Charg

• Pre-flashed with Meshtastic firmware: Ready to use out of the box with pre-installed Meshtastic firmware for seamless setup.

• Multi-protocol support: Featuring NRF52840 and SX1262, it supports LoRa (global ISM bands in the 1-15 km range). You can freely choose your region in the Meshtastic app. It also supports Bluetooth Connectivity APP, LoRa Communication, GNSS Positioning Module, ensuring compatibility with a wide range of devices and networks'.

• Meshtastic is an off-grid messaging system using inexpensive hardware to create your personal mesh. Radios forward messages to the next node to distribute them over the network. Communicate 1-15 kilometers between nodes. Internet-connected relay nodes enable the conversation to move online too.

• Easily integrates with Meshtastic app on iPhone or Android. Comes preflashed with working version of Meshtastic firmware. Firmware updates freely available from Meshtastic site. Basic support offered by vendor if assistance is needed.

• Equipped with 5000mAh battery and Support Type-C charging,Can be meet the needs of all-weather outdoor operation; Suitable for pet tracking, outdoor hiking, mountaineering enthusiasts, and emergency rescue.

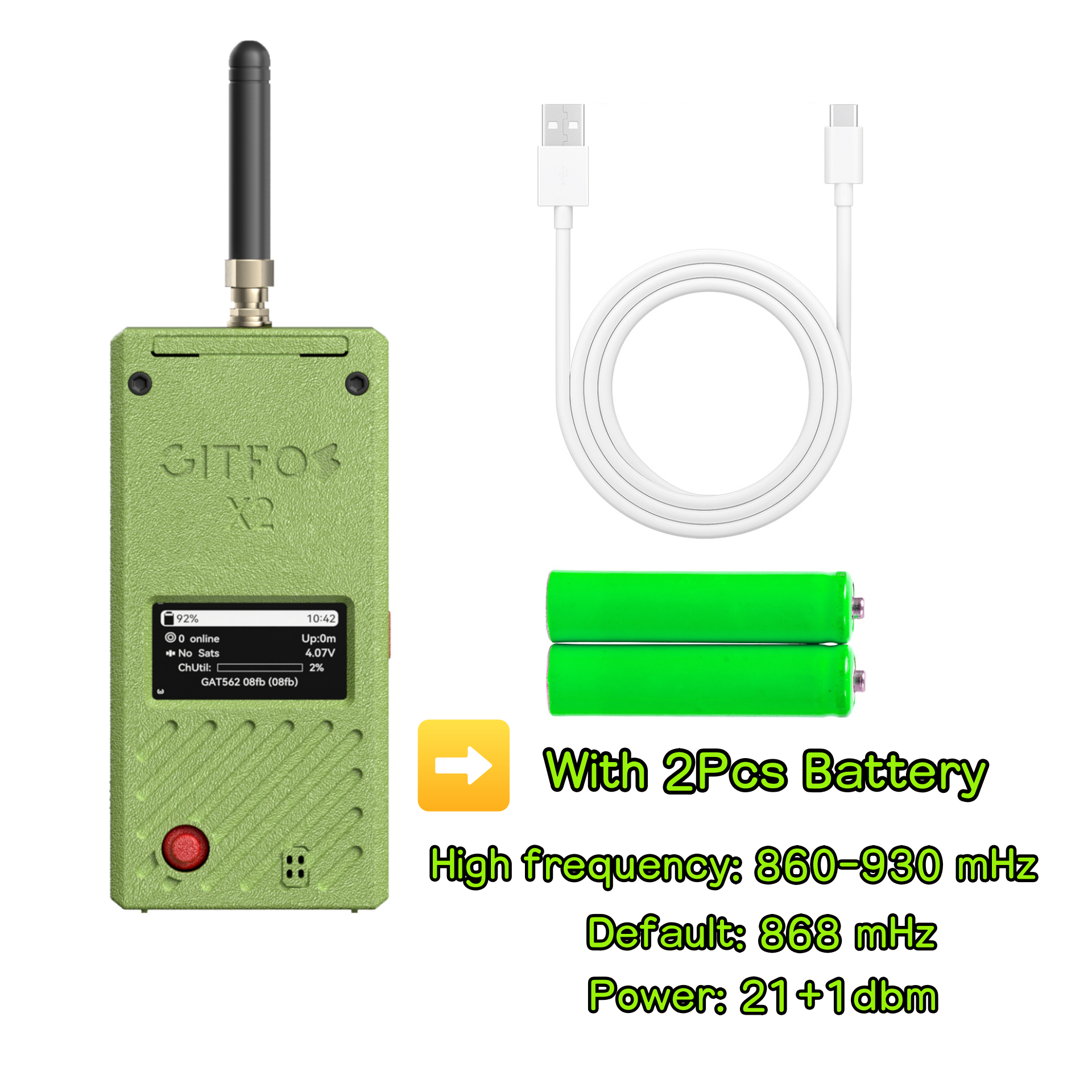

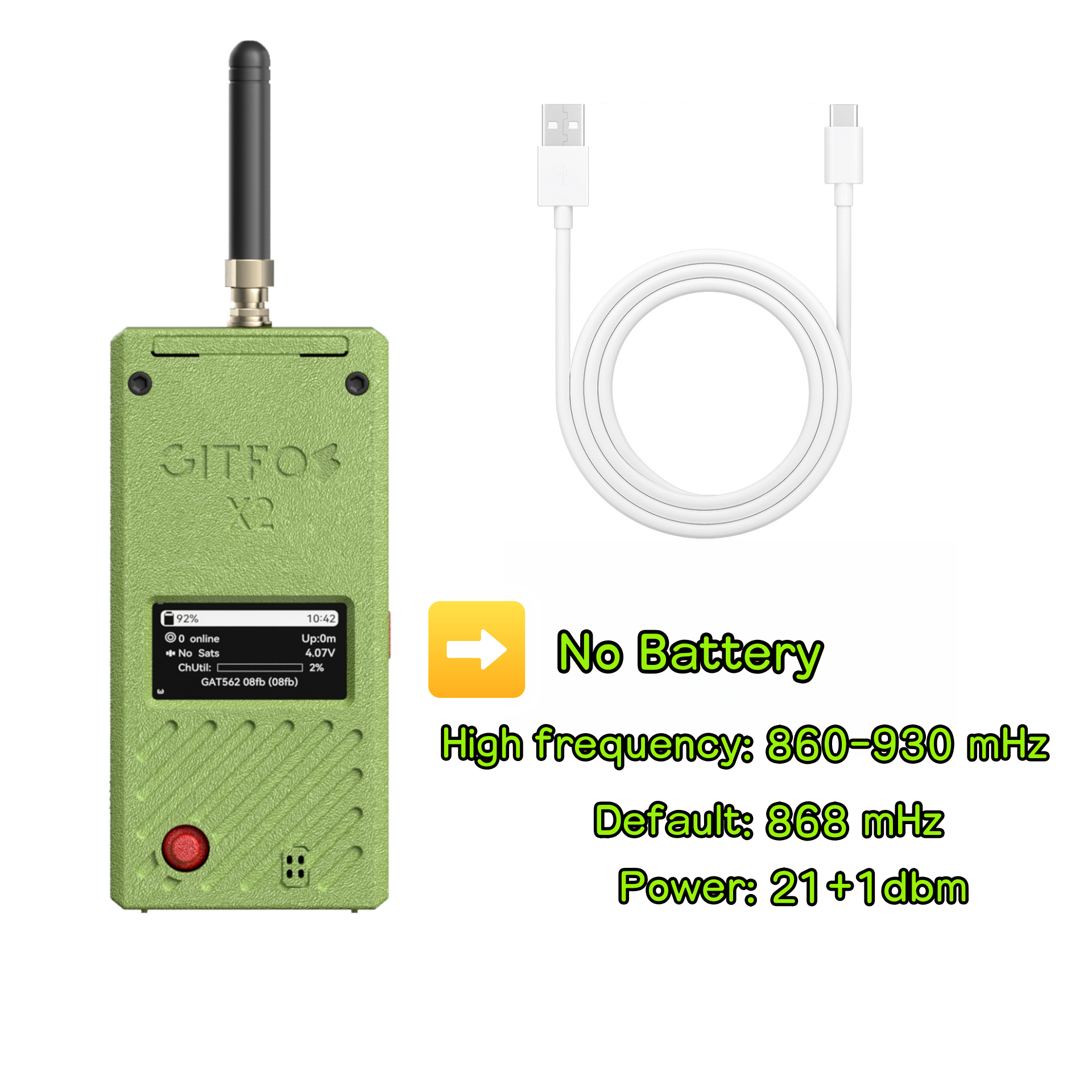

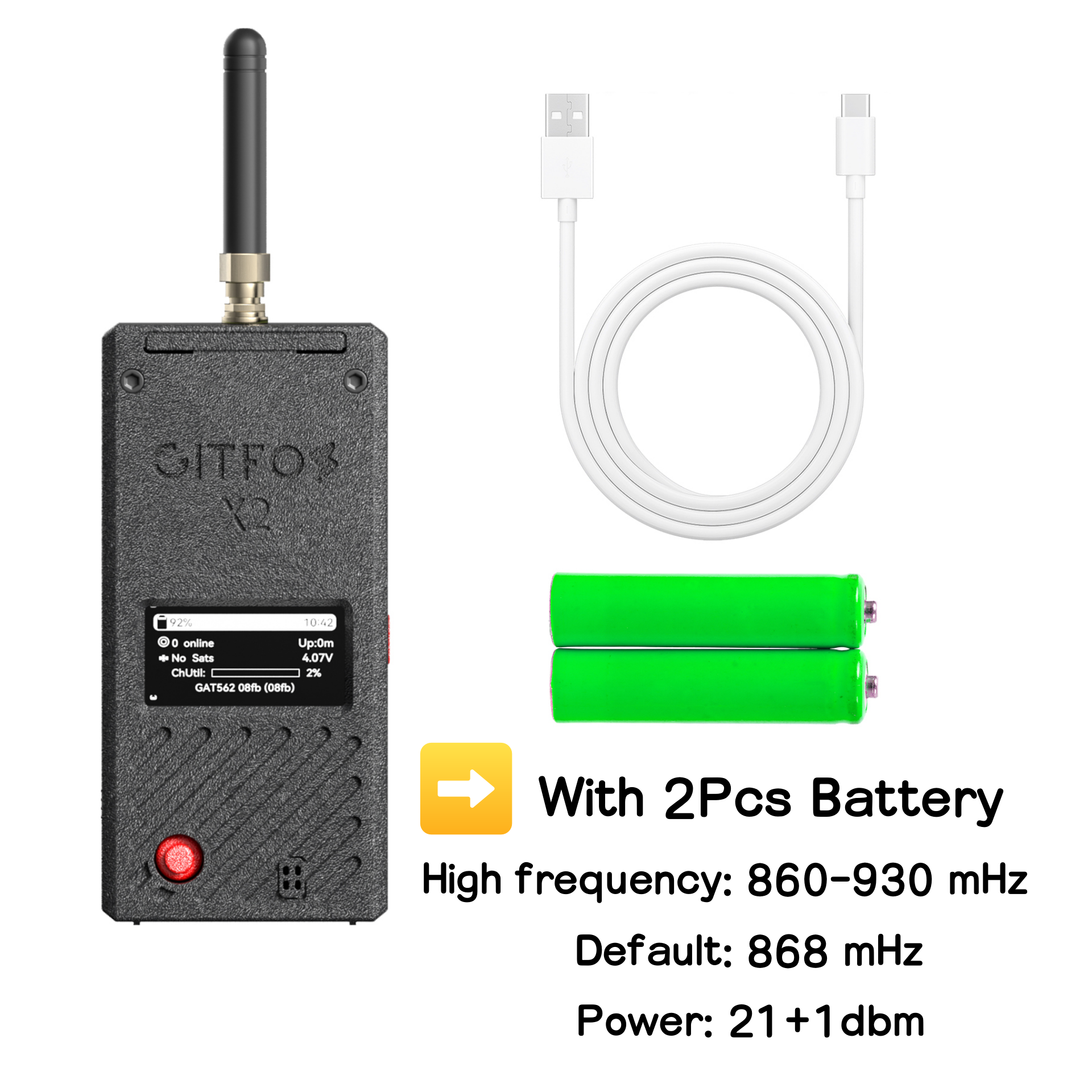

X2 Product Features:

• Built-in Bluetooth Antenna

• Powered by nRF52840 SoC with Cortex-M4F core (64 MHz)

• Maximum transmit power: 21± 1dBm

• LoRa: Based SX1262, supports 430-510/862-930MHz

• L76K(GPS,BeiDou,GLONASS,QZSS)

• Built-in OLED display, 1.3 inches / Resolution: 128*64 pixels / Effective display area (mm): Length 34.5 * Width 23.0 * Height 1.47

• Built-in 5000mAh Rechargeable Li-ion Battery 18650

• Supports Type-C ChargingExternal 2.Odbm Glue Stick Antenna

• Size information: 95mm * 48mm * 35mm (excluding antenna length)   Weight 202g

• For those who don't want to do it, it works right out of the box.

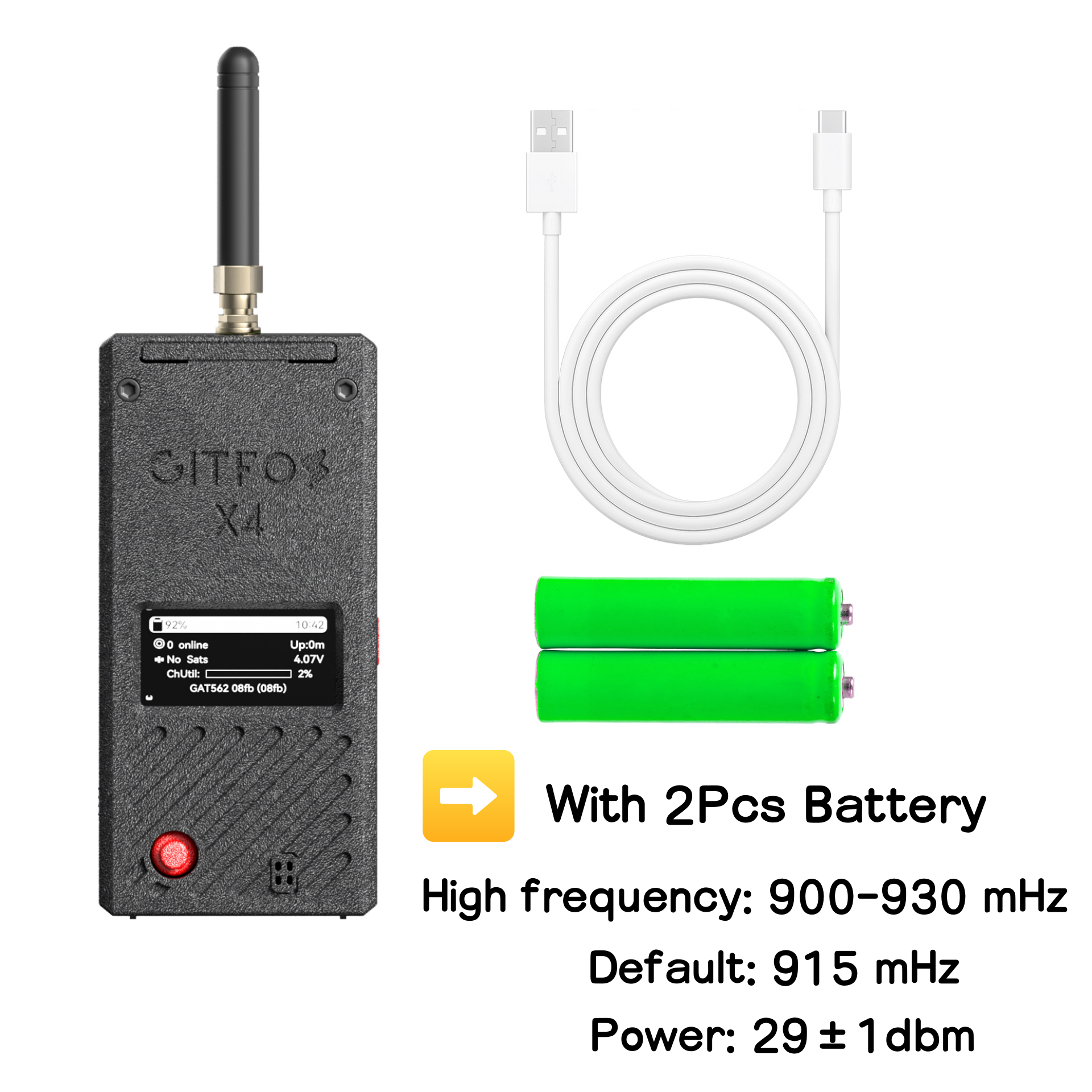

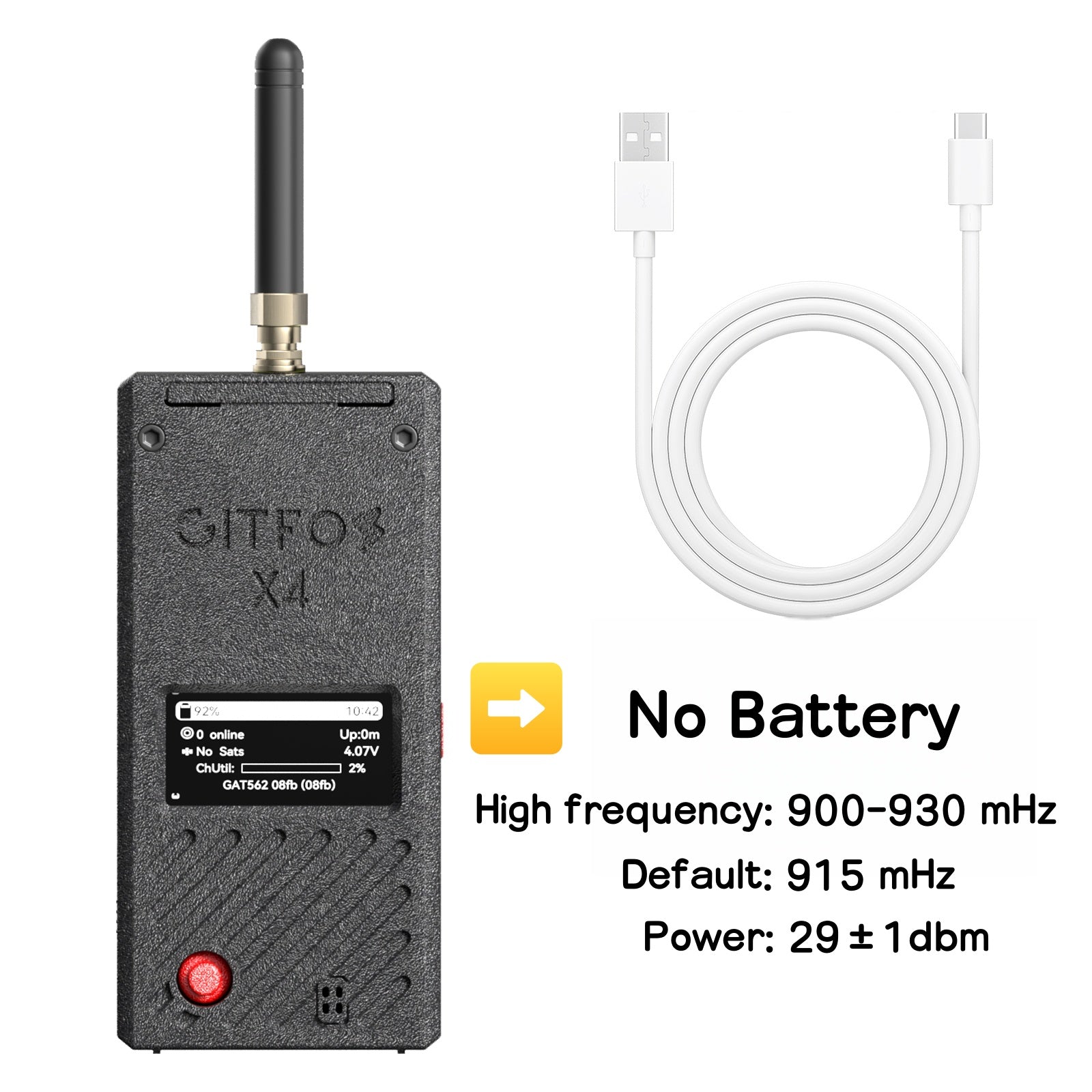

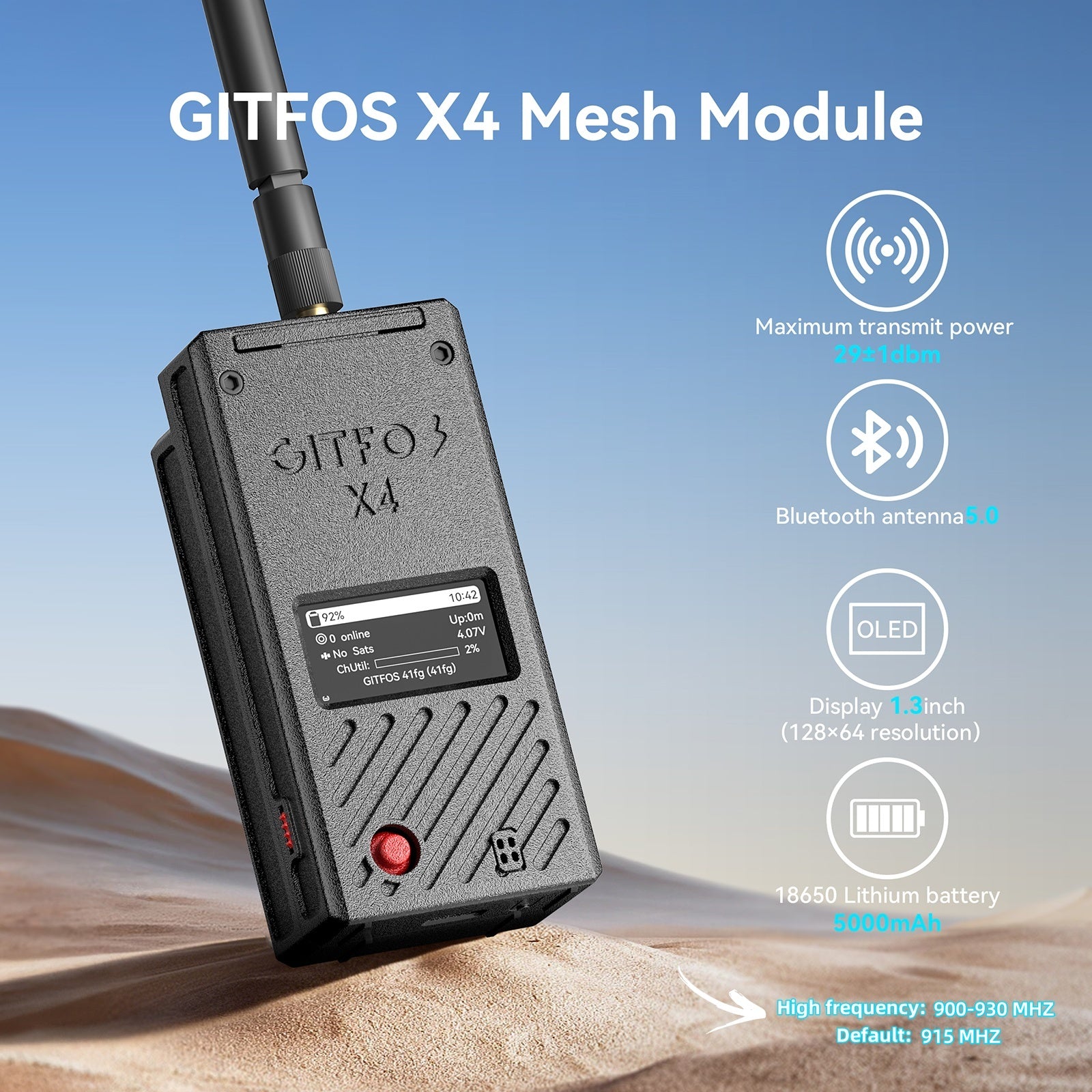

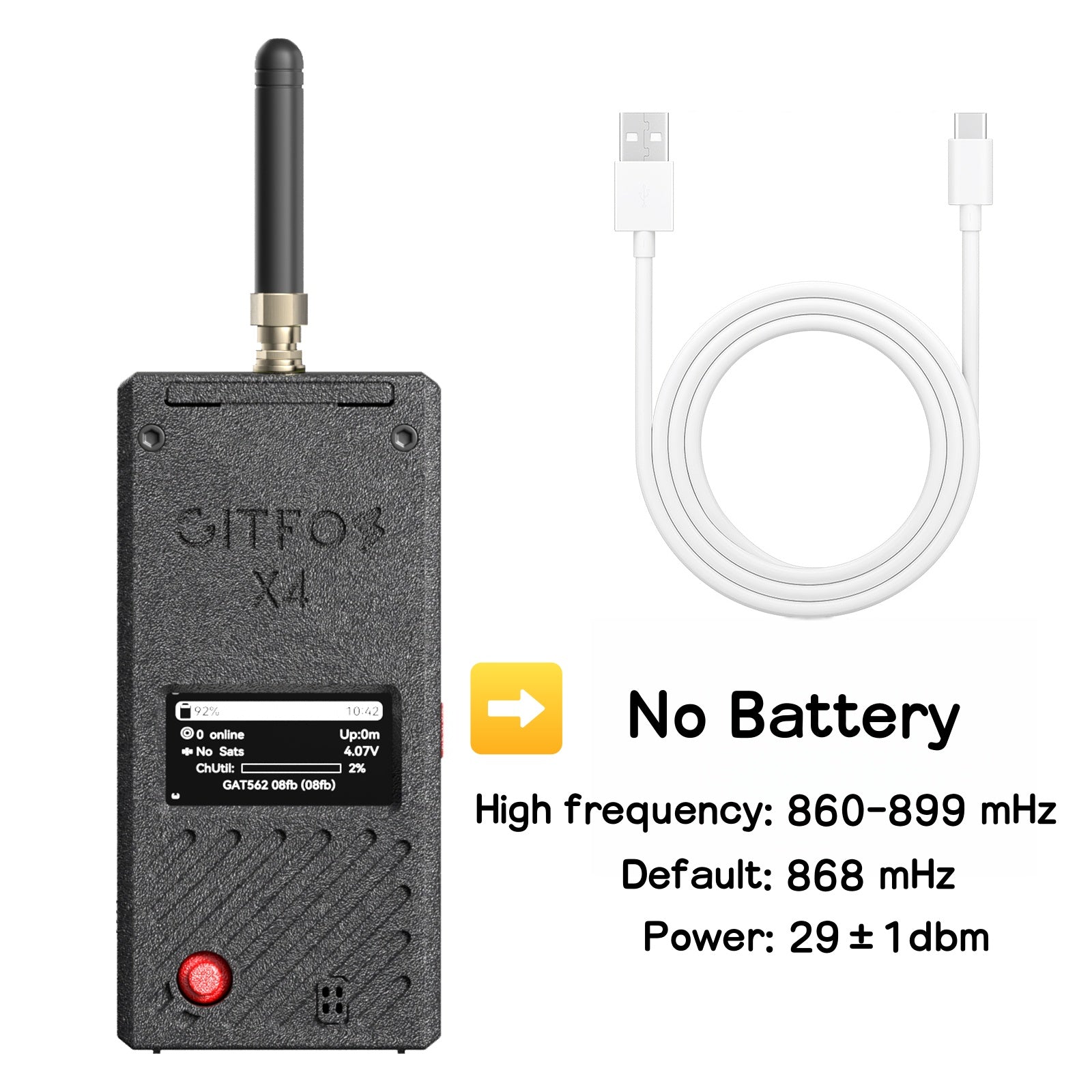

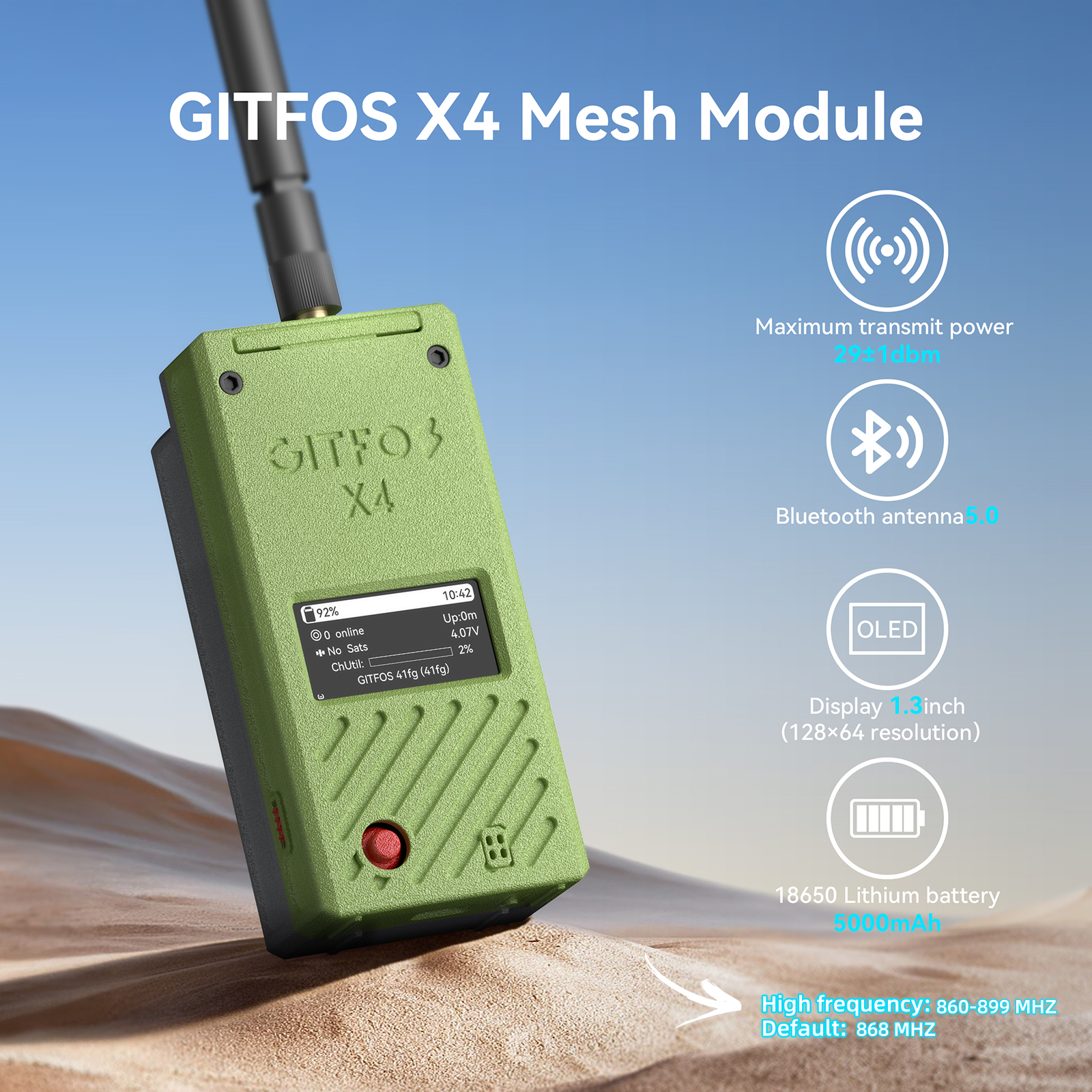

X4 Product Features:

• Built-in Bluetooth Antenna

• Powered by nRF52840 SoC with Cortex-M4F core (64 MHz)

• Maximum transmit power: 29±1 dBm

• LoRa: Based SX1262, supports 860-899/900-930MHz

• L76K(GPS,BeiDou,GLONASS,QZSS)  Filter

• Built-in OLED display, 1.3 inches / Resolution: 128*64 pixels / Effective display area (mm): Length 34.5 * Width 23.0 * Height 1.47

• Built-in 5000mAh Rechargeable Li-ion Battery 18650

• Supports Type-C ChargingExternal 2.Odbm Glue Stick Antenna
• For those who don't want to do it, it works right out of the box.

• ME280 (BME280 temperature and humidity sensor): Can detect environmental data in real time (not included by default, requires secondary soldering).

• Buzzer: Used for power-on alerts, button sounds, and message sending/receiving notifications.

• GPS ANT (GNSS Antenna): Works with the GNSS module to achieve precise positioning, supporting the device in acquiring location information in outdoor and other environments.

• GNSS Module (Global Navigation Satellite System Module): Integrates satellite navigation functions, capable of receiving multi-system satellite signals to provide positioning, timing, and other functions.

• USER BUTTON: Press once on the main screen to sleep/wake the device; switches between English and Chinese input on the virtual keyboard.

• OLCD Display (Liquid Crystal Display): Provides a visual display of device status, data information, and the operating interface, facilitating user viewing and interaction.

• Power SW (Power Switch): Used to control the power supply of the device, turning it on or off.

• Joystick: Enables virtual keyboard operation through directional control, supporting both Chinese and English input. It allows for menu selection, text editing, and other interactive operations, enhancing the convenience of human-machine interaction.

• USB TYPE-C: Supports device charging and data transmission, providing power supply and a data interface for interaction with external devices.

• RST BUTTON (Reset Button): Used for device reset. When the device malfunctions, this button can be used to restart the device. Double-clicking enters bootloader mode for firmware updates.

Side Components:

• SMA PORT: Used to connect the LoRa antenna.

• WS8212 (LED Indicator): Provides light indication; different light colors and flashing patterns can indicate different device states, such as operating status and alarm status.

Rear Components:

• BATTERY (2 x 18650 batteries): Provides power to the device. It uses two 18650 batteries with a maximum capacity of 5000mA, providing up to 14 days of standby time and ensuring the device can operate for extended periods without an external power source.

Reference chart for corresponding countries/frequencies

Note: The UK allows both the UK_433 (433 MHz) and EU_868 (868 MHz) frequency bands. This means that after purchasing a high-frequency band (868 MHz) device, you only need to set it to EU_868 mode in the Meshtastic software to use it.
